- High-concerned chemical: None
- Application: MOBILE PHONE,TV,xbox,Camera,PS4/3,PC,Display
- Output: USB,HDMI,AUDIO
- Input: HDMI,AUDIO
- Type: Video Capture Card
- Certification: FCC,RoHS,CE
- Origin: Mainland China
- Brand Name: MZX
- PC Input ports: HDMI-compatible, Microphone
- Output ports: USB3.0, HDMI-compatible, Audio
- Usage: Video game capture card box

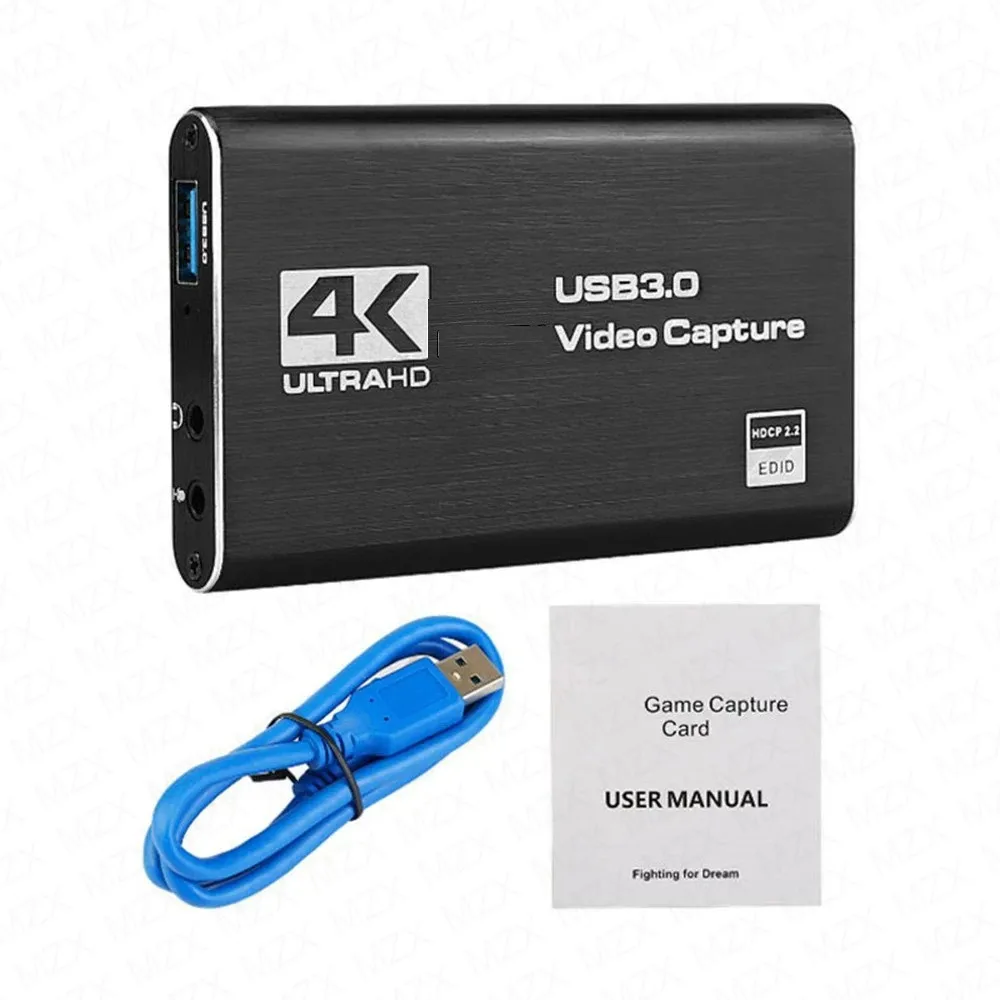

- Accessories: 1 USB-A to USB-A USB 3.0 cable, 1 user manual
- Port Type: USB 3.0 A
- Name: Video capture card
- Feature 1: Video game capture card
- Feature 2: Video game capture box

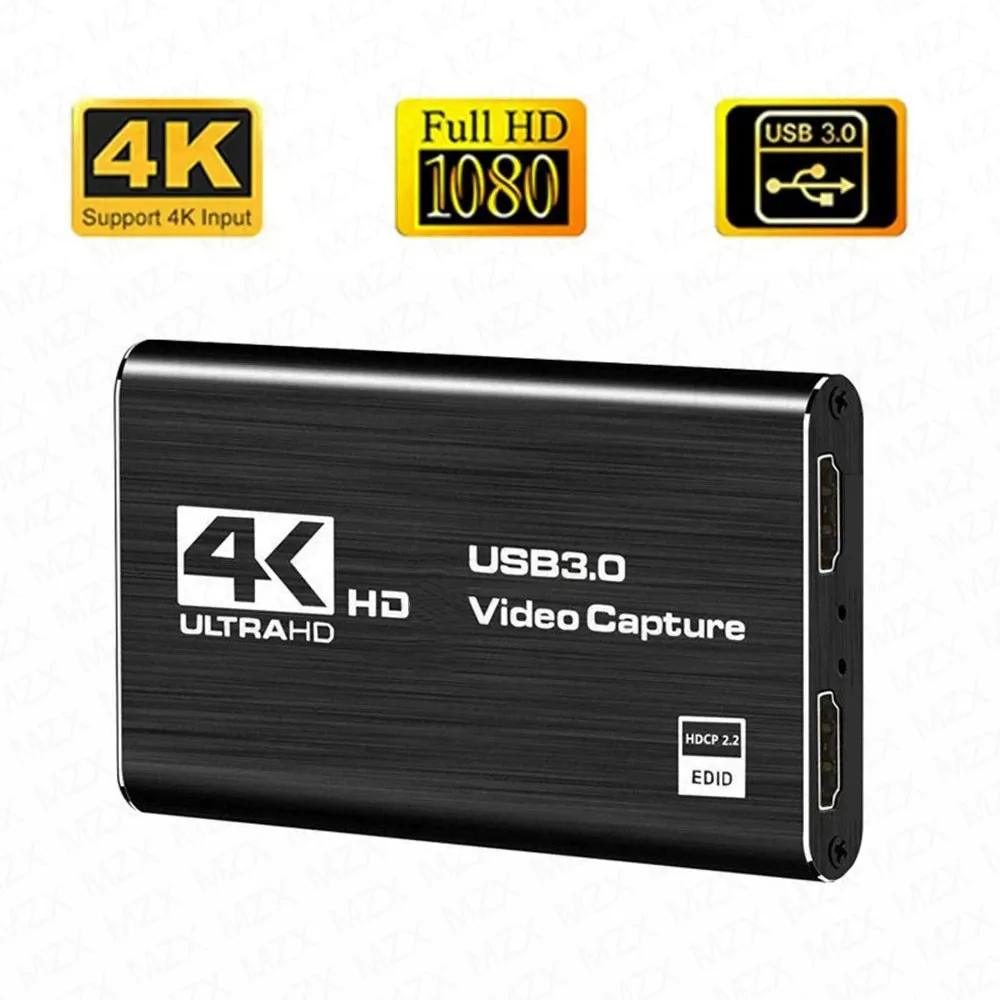

4K HDTV to USB3.0 video capture card, easy to carry, superior performance, good compatibility, simple installation, powerful features, etc., can collect 1 HDTV input signal; compatible with Windows 7, 8, 8.1, 10 or Later, Linux OS, Mac OS USB3.0 interface, compatible with multiple USB3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), backward compatible with USB2.0, connected to PC or mobile phone through USB3.0 interface Through many free third-party playback and acquisition software, to achieve preview, recording, acquisition, live broadcast and other functions, HDTV video acquisition complies with UVC and UAC standards, easy to use.
Video Capture Card Box Features:
1. It can capture single HD HDTV video signal;
2. The recorded video signal(output) can reach 1080p / 60Hz, HDTV input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4. Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the input audio format and convert it to 48KHz PCM audio;
10. 2 collection rods can be used on a PC;
11. Support online firmware upgrade to better improve product compatibility;
12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;
13. Support all third-party player software compatible with UVC and UAC protocols;
Video Capture Card Box System Requirements:
Computer system requirements:
Windows 10 / Windows 8.1 / Windows 7 (SP1);
Desktop computer: Intel Core i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above;
Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above;
4 GB RAM (8 GB recommended);
Mobile phone system requirements:
Android phone (supported by newer phones);
Only supports USB2, not USB3. (The reason is that android UVC driver does not support USB3);
If it is a USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use.
Video Capture Card Box Specifications:
1. Input interface: 1 HDTV interface, 1 Microphone hole;
2. Output interface: 1 USB3.0 port, 300 ~ 350MB / s throughput, 1 Audio hole, 1 HDTV interface;
3. HDTV input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280×960, 1024×768, 800×600, 640×480;
4. HDTV sound input: LPCM sound signal;
5.HDTV input format: compatible with HDTV 1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640×480 / 720×480 / 720×576 / 800×600 / 1024×768 / 1280×720 /
1280×960 / 1280×1024 / 1366×768 / 1360×768 / 1440×900 / 1400×900 / 1680×1050 / 1920×1080
frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps;
7. Video sampling rate: HDTV : 165MHz;
8. Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards;
9. Output color space: YUV, RGB;
10. Support operating system: Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;
11. Software compatibility:
Adobe Flash Media Live Encoder (Windows, OS X);
Real Producer Plus (Windows); VLC (Windows, OS X, Linux);
QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and etc.
12. Power consumption: <= 2.5W;
13. Working temperature: 0-70 degrees Celsius;
14. Storage temperature: -20-120 degrees Celsius;
15. Storage humidity: 5% -90%.

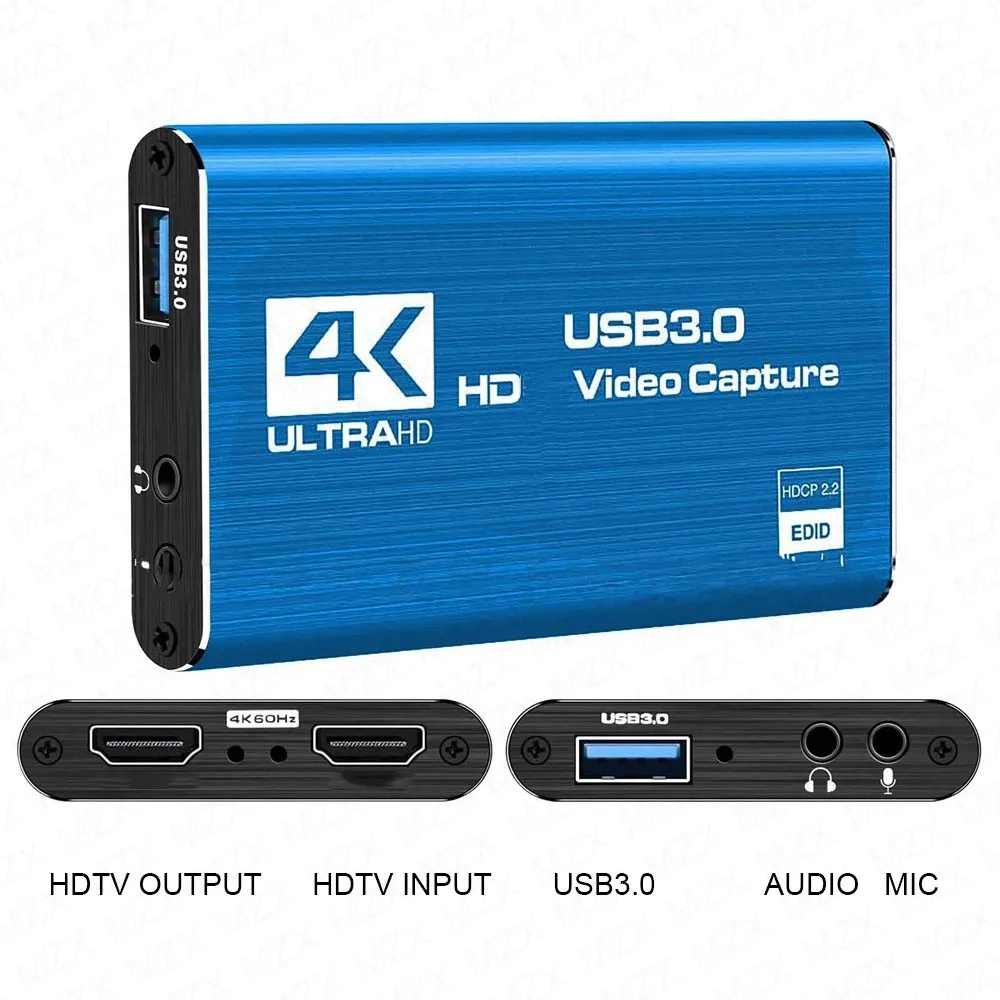

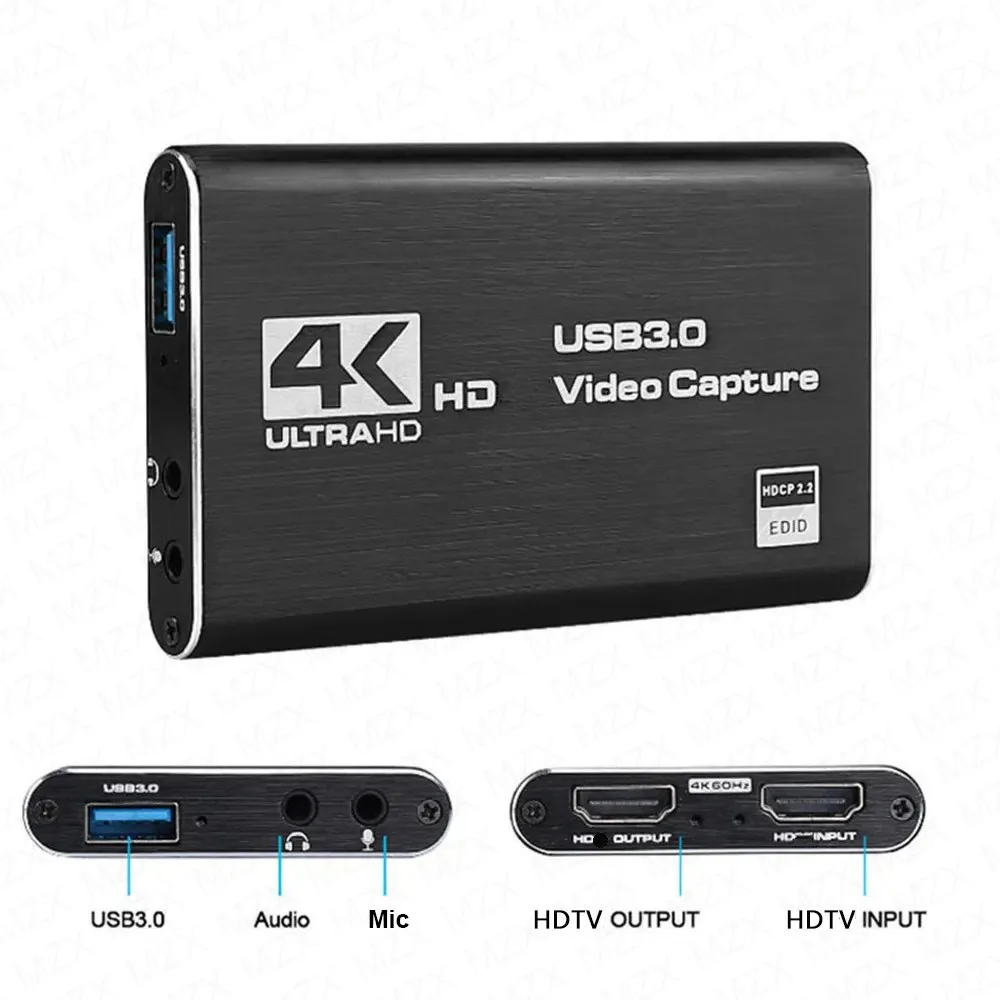

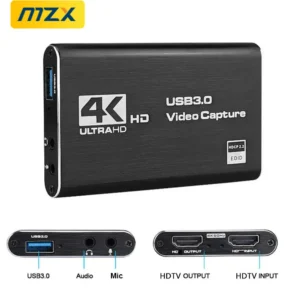

Video Capture Card Box Interface Descriptions:
1. Signal indicator: When the device captures video normally, the indicator lights up;
2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights;
3. HDTV input: This slot is where the HDTV output source such as camera, camcorder, game box, IPTV box, etc. is connected;
4. USB3.0 output: This slot is where you connect the USB3.0 input of a computer or laptop.
Video Capture Card Box Interface Pictures:

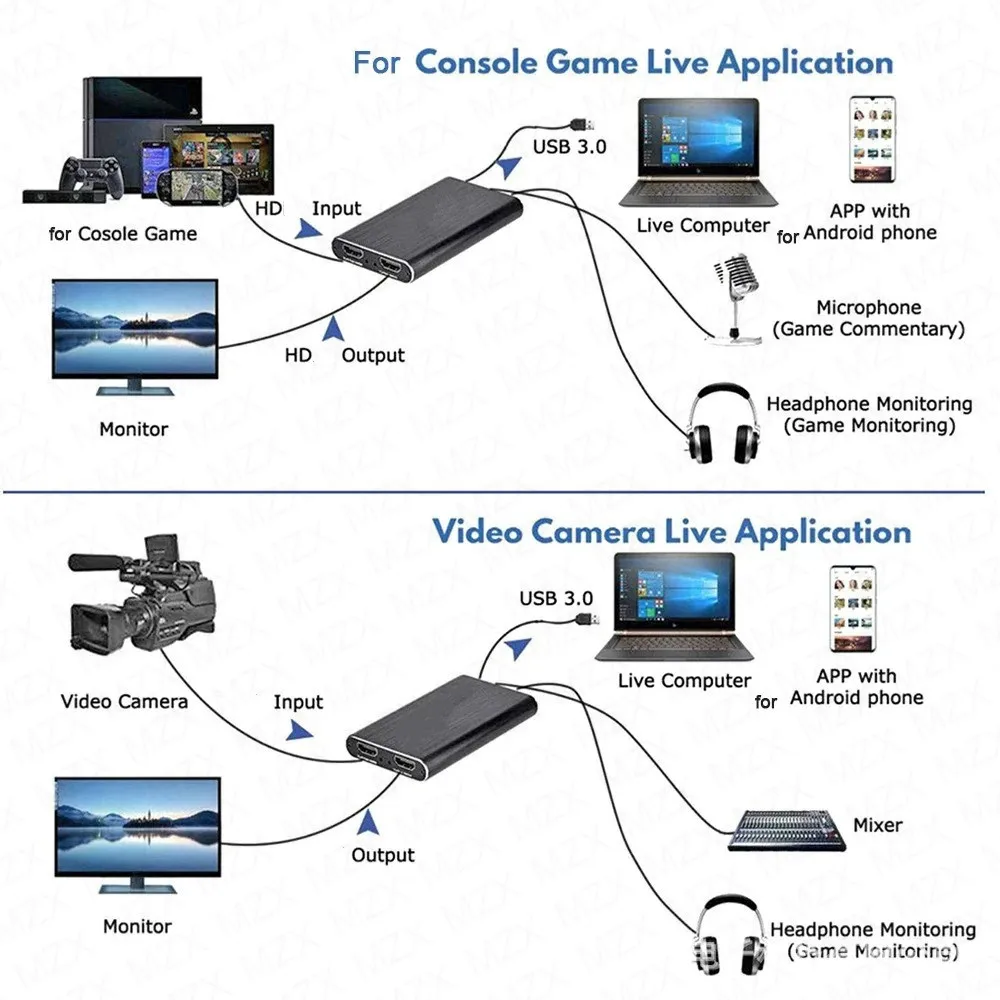

How to connect?kvm switch,usb switch,switch usb,kvm switch usb,usb kvm,usb switch 2 pc,switch kvm,kvm usb,usb kvm switch,usb c kvm,kvm usb switch,switch usb,switch selector,mouse switch,usb switch,for kvm hdmi,hdmi kvm,kvm hdmi usb,hdmi switch,kvm switch hdmi,hdmi splitter,switch hdmi,switch kvm hdmi,kvm hdmi switchPlease note: the size is measured by hand. May have a little error compared with actual product.
How to connect?kvm switch,usb switch,switch usb,kvm switch usb,usb kvm,usb switch 2 pc,switch kvm,kvm usb,usb kvm switch,usb c kvm,kvm usb switch,switch usb,switch selector,mouse switch,usb switch,for kvm hdmi,hdmi kvm,kvm hdmi usb,hdmi switch,kvm switch hdmi,hdmi splitter,switch hdmi,switch kvm hdmi,kvm hdmi switch

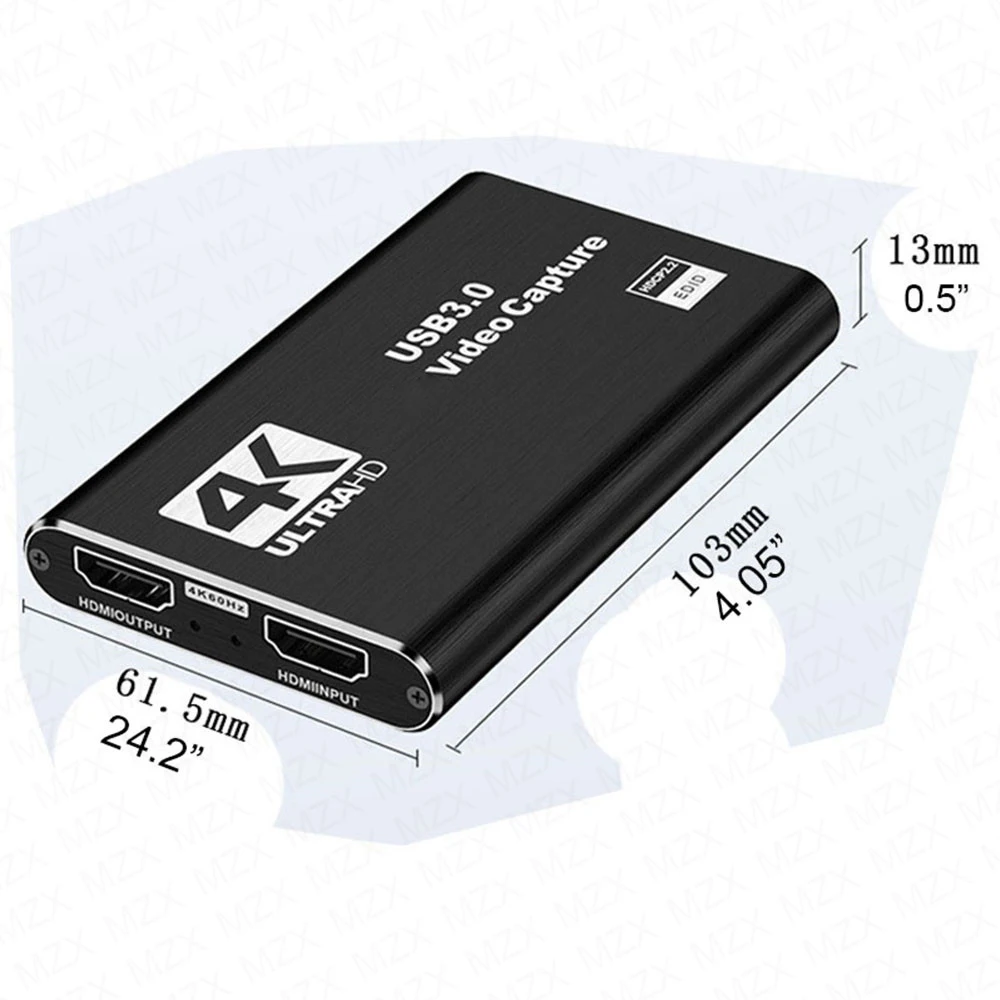

Please note: the size is measured by hand. May have a little error compared with actual product.It depends on your device
KVM Switch 2 DP Displayport Ports 4K 60Hz 4 USB 3.0 A Computer PC Share Dual Monitors Switcher Selector Keyboard Mouse U-disk
Rigorous test:
100% inspection. Each product must be tested and inspected one by one before entering products facilities, any unqualified materials are rejected immediately.We provide quality control testing and analysis for each product line.
Multiple testing:
All products are produced in accordance with requested technical document.
The first several products of each day will be checked first by the worker, then by our full time QC inspector.
Mass production will be started only if the sample products have been tested and all have been passed inspection.
Professional QC team:
During mass production, the QC team will periodically check products to ensure randomized testing.
The QC team completely a tour of inspection and parts are spot checked before they are able to move on to the next step in production.
Finished products are 100% inspected one by one to make sure no quality issue.

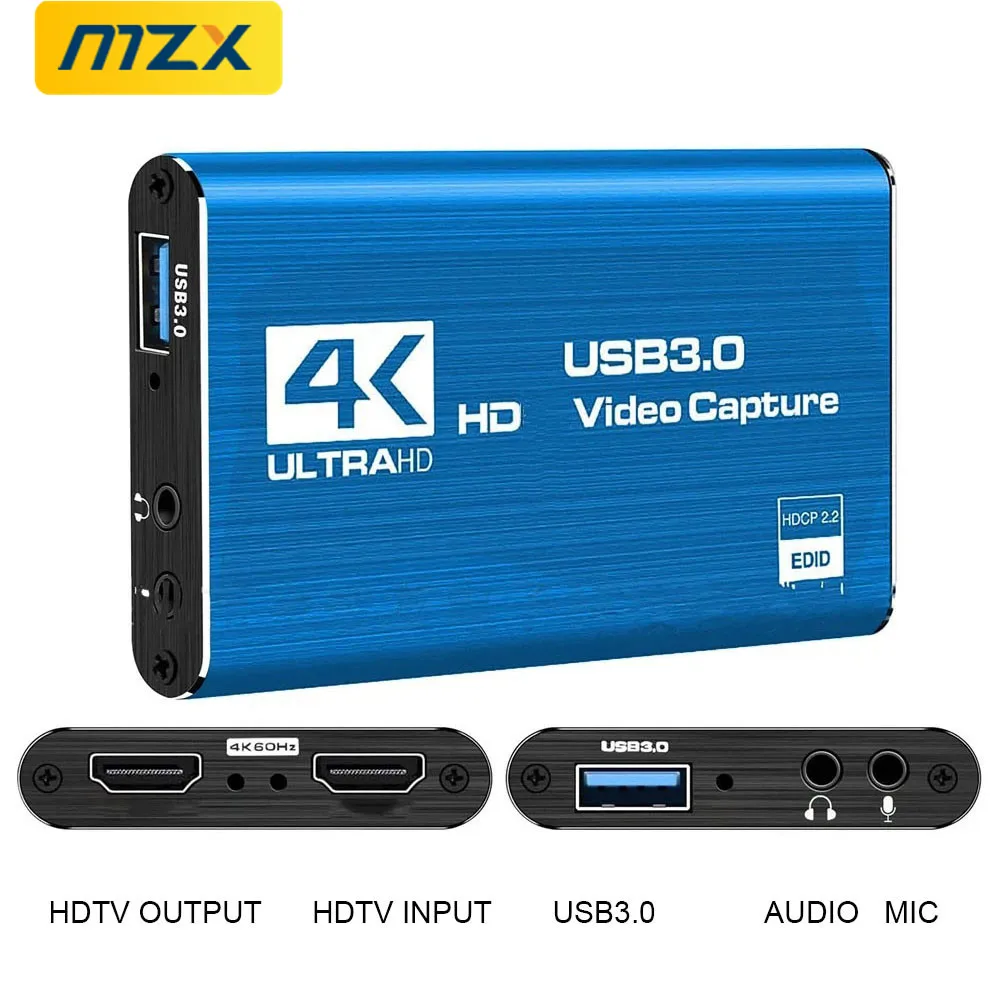

MZX Video Capture Card Box 4K HDMI-Compatible 60Hz 30Hz USB 3.0 1080P 60fps 30fps Live Recorder Grabber Capturer Game Audio Mic
